S16400 9T8/LED/HO-SIGN/24-840/BP 9 Watt T8 LED; 4000K; 1200 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
S16400 9T8/LED/HO-SIGN/24-840/BP 9 Watt T8 LED; 4000K; 1200 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
S16400 9T8/LED/HO-SIGN/24-840/BP 9 Watt T8 LED; 4000K; 1200 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
SKU S16400
Regular price
$245.30
$24.53/Count
Sale price
$245.30
Regular price
$0.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
In Stock
Ships Same Day All orders placed till 1 PM EST will ship same day.

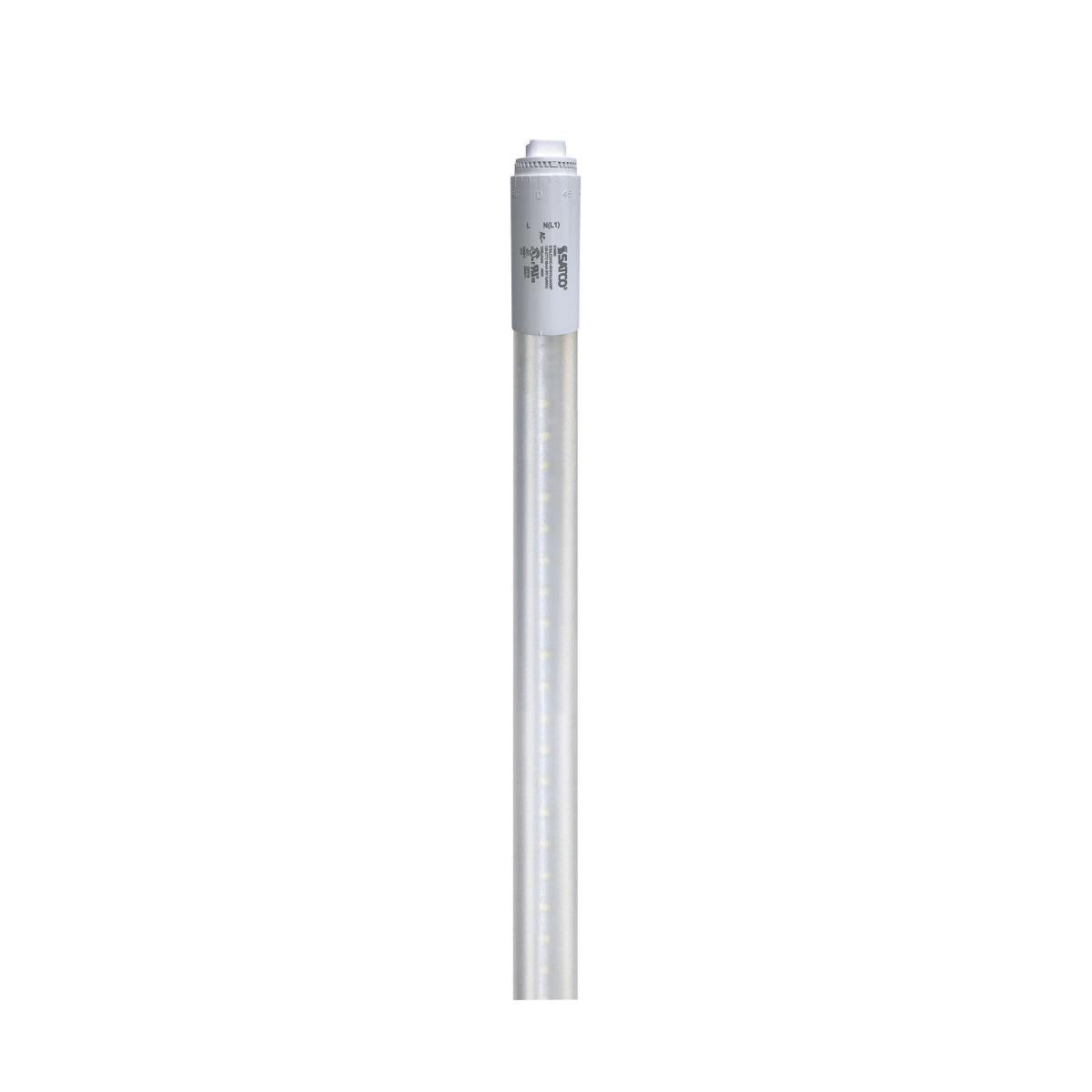

Satco's 9 watt T8 LED Type B single ended ballast bypass linear lamps is perfect for general lighting in large commercial spaces and well suited for high ceiling applications. The frost bulb features a recessed double contact base and a 360 degree beam spread, delivering exceptional illumination. With a temperature of 4000 kelvins, this lamp provides 50,000 hours of cool white light.
- MOL: 21.88 inches, MOD: 1.00 inch
- Superior 83 CRI light quality, 1200 lumens, 4000K cool white light, with a 360 degree beam spread
- Rated for enclosed fixtures
- Damp location rated
- 9 watt LED replaces 37 watt fluorescent
- Frost finished linear plastic bulb
- LED energy efficient fixture
- 5 Year Limited Warranty
General
- Status: Active
- Substitute: S16431
- Watts: 9W
- Incandescent Equivalent: 40W
- Fluorescent Equivalent: 35W
- Volts: 120V-277V
- Ballast Type: Type B
- Shape: T8
- Base: Recessed Double Contact HO/VHO
- ANSI Base: R17d
- Nominal Length: 24
- Finish: Frost
- CCT (Kelvin): 4000K
- Temperature: Cool White
- CRI: 83
- Lumens: 1200L
- Beam Spread: 360
- Dimmable: Non-Dimmable
- Hours Rated: 50000
- Lamp Type: Linear
- Technology: LED
Electrical
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- Operating Temperature: -30C (-22F) to +45C (+113F)
Physical
- MOL: 21.88
- MOD: 1
- Material: Plastic
- Lens Finish: Frost
Additional Information
- Installation Notes: No ballast or external driver required; Direct wire 120-277V line voltage.
- Rated For Enclosed Fixture: Yes
- Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Compliance
- Safety Listing: cULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
- Location Rating: Damp
- Energy Star: No
- DLC Approved: No
- CA T20 / T24 Rationale: Exempt - Base Not Regulated
- California Status: Lawful for sale in California
- Title 20 / 24 Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: Yes
- SDS Sheet: LED Lamp
Packaging
- Each UPC: 045923164002
- Each Quantity: 1
- Each Weight (lb.): 0.44
- Inner Quantity: 0
- Case UPC: 10045923164009
- Case Quantity: 10
