S16401 9T8/LED/HO-SIGN/24-865/BP 9 Watt T8 LED; 6500K; 1200 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
S16401 9T8/LED/HO-SIGN/24-865/BP 9 Watt T8 LED; 6500K; 1200 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
S16401 9T8/LED/HO-SIGN/24-865/BP 9 Watt T8 LED; 6500K; 1200 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
SKU S16401
Regular price
$245.30
$24.53/Count
Sale price
$245.30
Regular price
$0.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
In Stock
Ships Same Day All orders placed till 1 PM EST will ship same day.

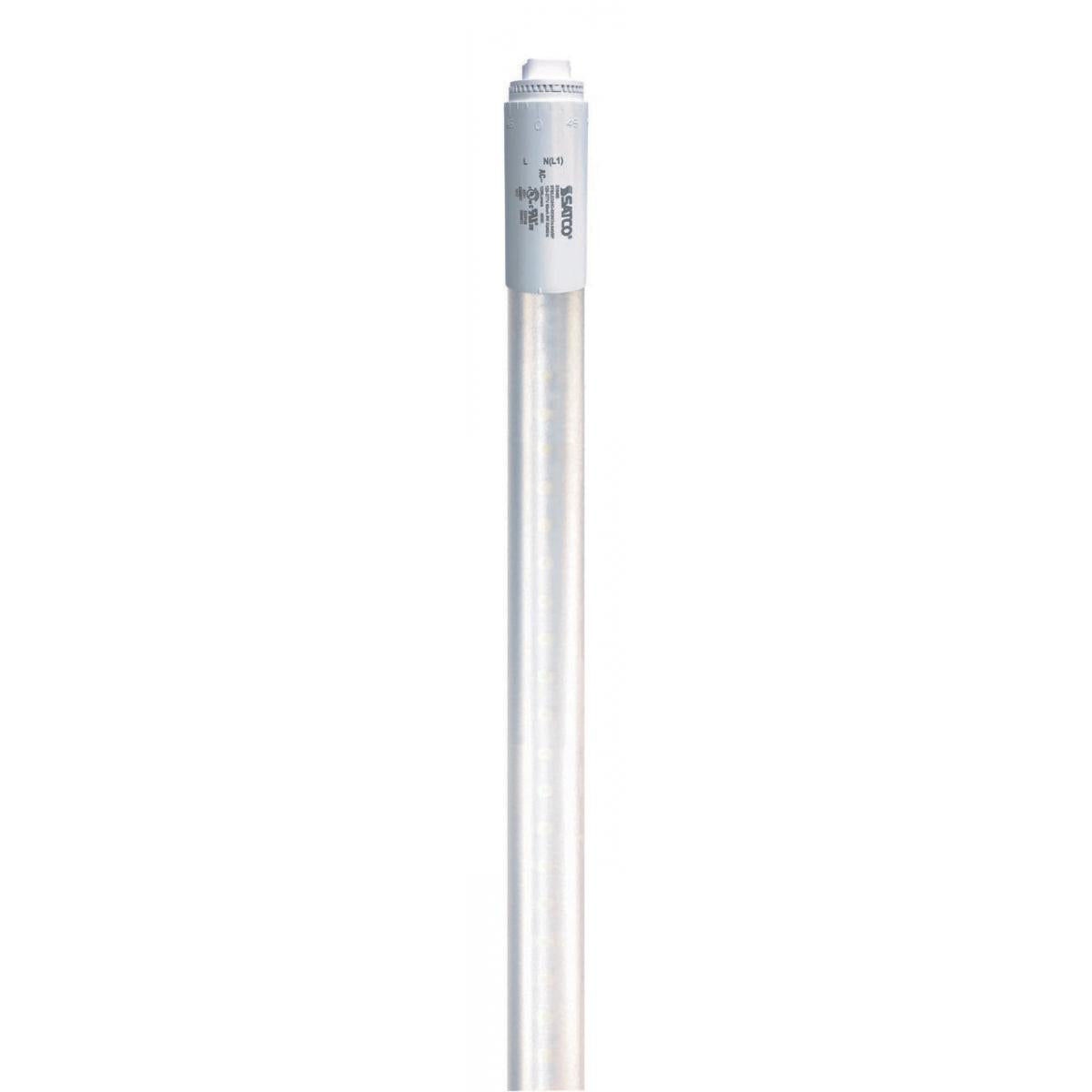

Satco's 9 watt T8 LED Type B single ended ballast bypass linear lamps is perfect for general lighting in large commercial spaces and well suited for high ceiling applications. The frost bulb features a recessed double contact base and a 360 degree beam spread, delivering exceptional illumination. With a temperature of 6500 kelvins, this lamp provides 50,000 hours of daylight.
- MOL: 21.88 inches, MOD: 1.00 inch
- Superior 83 CRI light quality, 1200 lumens, 6500K daylight, with a 360 degree beam spread
- Rated for enclosed fixtures
- Damp location rated
- 9 watt LED replaces 37 watt fluorescent
- Frost finished linear plastic bulb
- LED energy efficient fixture
- 5 Year Limited Warranty
General
- Status: Discontinued
- Substitute: S16431
- Watts: 9W
- Incandescent Equivalent: 40W
- Fluorescent Equivalent: 35W
- Volts: 120V-277V
- Ballast Type: Type B
- Shape: T8
- Base: Recessed Double Contact HO/VHO
- ANSI Base: R17d
- Nominal Length: 24
- Finish: Frost
- CCT (Kelvin): 6500K
- Temperature: Daylight
- CRI: 83
- Lumens: 1200L
- Beam Spread: 360
- Dimmable: Non-Dimmable
- Hours Rated: 50000
- Lamp Type: Linear
- Technology: LED
Electrical
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- Operating Temperature: -30C (-22F) to +45C (+113F)
Physical
- MOL: 21.88
- MOD: 1
- Material: Plastic
- Lens Finish: Frost
Additional Information
- Installation Notes: No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
- Rated For Enclosed Fixture: Yes
- Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Compliance
- Safety Listing: cULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
- Location Rating: Damp
- Energy Star: No
- DLC Approved: No
- CA T20 / T24 Rationale: Exempt - Base Not Regulated
- California Status: Lawful for sale in California
- Title 20 / 24 Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: Yes
- SDS Sheet: LED Lamp
Packaging
- Each UPC: 045923164019
- Each Quantity: 1
- Each Weight (lb.): 0.44
- Inner Quantity: 0
- Case UPC: 10045923164016
- Case Quantity: 10
Absolutely, it's safe to use your credit card on our website. We prioritize your security and employ top-notch measures, including SSL encryption, trusted payment processors, regular security audits, and strict data handling policies. Your data is in good hands. If you have any concerns or questions, feel free to contact our support team. Your trust is our priority.
On each product's listing page you can find complete product specifications, including measurements. If you have any questions that aren't answered on the product page, please Contact Us, and we'd be happy to help.
Shipping
Shipping is free on orders over $35 to the 48 contiguous states (all states except Alaska and Hawaii).
For all orders under $35 the best value is flat-rate ground shipping for $9.95
For faster delivery, we offer Next Day, 2nd Day, and 3 Day Select. We also ship to Canada, Alaska, Hawaii, and U.S. Territories for an additional cost.
Returns
If you're not completely satisfied with your purchase, most unused items can be returned for a refund within two weeks (decor items) or 30 days (light fixtures) of receipt. Unfortunately, shipping is not refundable.
Satco's 9 watt T8 LED Type B single ended ballast bypass linear lamps is perfect for general lighting in large commercial spaces and well suited for high ceiling applications. The frost bulb features a recessed double contact base and a 360 degree beam spread, delivering exceptional illumination. With a temperature of 6500 kelvins, this lamp provides 50,000 hours of daylight.
- MOL: 21.88 inches, MOD: 1.00 inch
- Superior 83 CRI light quality, 1200 lumens, 6500K daylight, with a 360 degree beam spread
- Rated for enclosed fixtures
- Damp location rated
- 9 watt LED replaces 37 watt fluorescent
- Frost finished linear plastic bulb
- LED energy efficient fixture
- 5 Year Limited Warranty
General
- Status: Discontinued
- Substitute: S16431
- Watts: 9W
- Incandescent Equivalent: 40W
- Fluorescent Equivalent: 35W
- Volts: 120V-277V
- Ballast Type: Type B
- Shape: T8
- Base: Recessed Double Contact HO/VHO
- ANSI Base: R17d
- Nominal Length: 24
- Finish: Frost
- CCT (Kelvin): 6500K
- Temperature: Daylight
- CRI: 83
- Lumens: 1200L
- Beam Spread: 360
- Dimmable: Non-Dimmable
- Hours Rated: 50000
- Lamp Type: Linear
- Technology: LED
Electrical
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- Operating Temperature: -30C (-22F) to +45C (+113F)
Physical
- MOL: 21.88
- MOD: 1
- Material: Plastic
- Lens Finish: Frost
Additional Information
- Installation Notes: No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
- Rated For Enclosed Fixture: Yes
- Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Compliance
- Safety Listing: cULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
- Location Rating: Damp
- Energy Star: No
- DLC Approved: No
- CA T20 / T24 Rationale: Exempt - Base Not Regulated
- California Status: Lawful for sale in California
- Title 20 / 24 Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: Yes
- SDS Sheet: LED Lamp
Packaging
- Each UPC: 045923164019
- Each Quantity: 1
- Each Weight (lb.): 0.44
- Inner Quantity: 0
- Case UPC: 10045923164016
- Case Quantity: 10
