S16406 24T8/LED/HO-SIGN/60-840/BP 24 Watt T8 LED; 4000K; 3100 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
S16406 24T8/LED/HO-SIGN/60-840/BP 24 Watt T8 LED; 4000K; 3100 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
S16406 24T8/LED/HO-SIGN/60-840/BP 24 Watt T8 LED; 4000K; 3100 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
SKU S16406
Regular price
$434.80
$43.48/Count
Sale price
$434.80
Regular price
$0.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
In Stock
Ships Same Day All orders placed till 1 PM EST will ship same day.

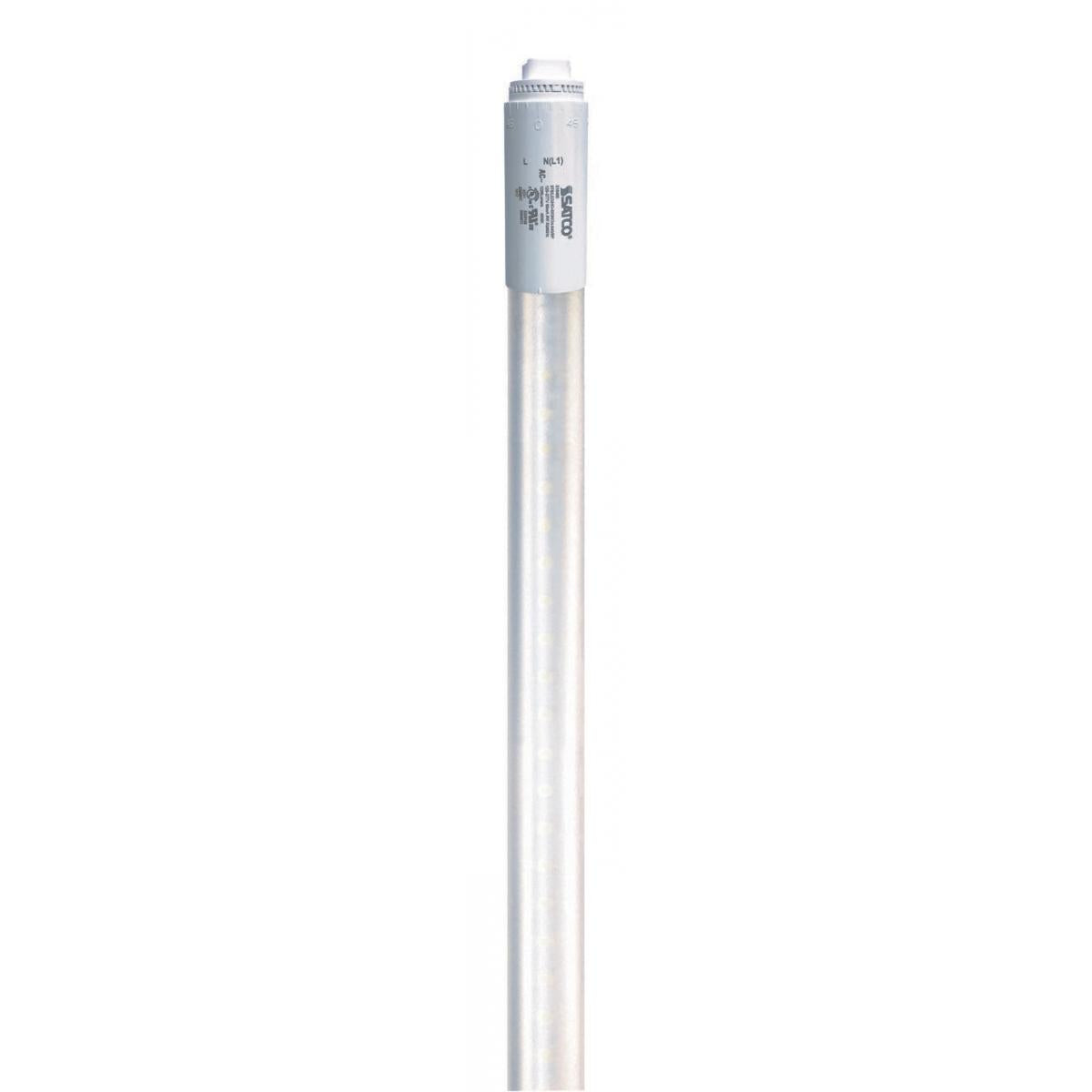

Satco's 24 watt T8 LED Type B single ended ballast bypass linear lamps with powerful lumen output and long lasting superior light is designed for use in commercial settings and the illumination of signs. The frost bulb features a recessed double contact base and a 360 degree beam spread, delivering exceptional illumination. With a temperature of 4000 kelvins, this lamp provides 50,000 hours of cool white light.
- MOL: 57.88 inches, MOD: 1.00 inch
- Superior 83 CRI light quality, 3100 lumens, 4000K cool white light, with a 360 degree beam spread
- Rated for enclosed fixtures
- Damp location rated
- 24 watt LED replaces 75 watt fluorescent
- Frost finished linear plastic bulb
- LED energy efficient fixture
- 5 Year Limited Warranty
General
- Status: Discontinued
- Substitute: S16436
- Watts: 24W
- Incandescent Equivalent: 100W
- Fluorescent Equivalent: 75W
- Volts: 120V-277V
- Ballast Type: Type B
- Shape: T8
- Base: Recessed Double Contact HO/VHO
- ANSI Base: R17d
- Nominal Length: 60
- Finish: Frost
- CCT (Kelvin): 4000K
- Temperature: Cool White
- CRI: 83
- Lumens: 3100L
- Beam Spread: 360
- Dimmable: Non-Dimmable
- Hours Rated: 50000
- Lamp Type: Linear
- Technology: LED
Electrical
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- Operating Temperature: -30C (-22F) to +45C (+113F)
Physical
- MOL: 57.88
- MOD: 1
- Material: Plastic
- Lens Finish: Frost
Additional Information
- Installation Notes: No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
- Rated For Enclosed Fixture: Yes
- Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Compliance
- Safety Listing: cULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
- Location Rating: Damp
- Energy Star: No
- DLC Approved: No
- CA T20 / T24 Rationale: Exempt - Base Not Regulated
- California Status: Lawful for sale in California
- Title 20 / 24 Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: Yes
- SDS Sheet: LED Lamp
Packaging
- Each UPC: 045923164064
- Each Quantity: 1
- Each Weight (lb.): 1.26
- Inner Quantity: 0
- Case UPC: 10045923164061
- Case Quantity: 10
